Excel Tables

What is an Excel Table?

XLSX.jl uses the word table in two distinct senses, and it is worth keeping them apart:

• Tabular data in a cell range. Functions like XLSX.gettable, XLSX.readtable, XLSX.writetable and XLSX.eachtablerow(sheet, ...) have always worked this way: they treat any rectangular block of cells that looks like a table as one, working out its extent from the cell content. Nothing about such a range is recorded in the Excel file — it is simply cells, and the "table" exists only in the eye of the caller. (Shown below on the right.)
• A native Excel Table. This is a real object in the workbook, created in Excel with Insert → Table (or Ctrl+T) and represented in XLSX.jl by the XLSX.Table type. It has a name, a recorded extent, named columns, and optionally a style, an autofilter and a totals row. (Shown below on the left. The Table ribbon is shown when a Table is selected)

In this guide, a capitalised Table always means the native Excel object. Where a function name is ambiguous, the argument type resolves it: gettable(sheet) reads a range, gettable(t::Table) reads a Table.

An Excel Table always knows its own extent, gives each of its columns a name, and may carry a visual style, an autofilter and a totals row. Formulas elsewhere in the workbook can refer to it by name and by column (Sales[revenue]) rather than by cell address.

Because a Table's extent is recorded in the file itself, XLSX.jl never has to guess where the data begins and ends. This is the key difference from XLSX.gettable(sheet, ...), which infers a table's bounds heuristically from cell content and therefore needs options like first_row, stop_in_empty_row and keep_empty_rows to resolve the ambiguity. With an Excel Table there is no ambiguity to resolve: the header row, the data rows and the totals row are all defined.

XLSX.jl represents a Table with the XLSX.Table type, holding its name, ref (range), columns, whether it has a totals row, and its style.

Reading Tables

Finding the Tables on a worksheet

Use XLSX.tables to list every Table on a worksheet, and XLSX.table to fetch one by name or by its workbook-scoped numeric id:

julia> using XLSX

julia> f = XLSX.readxlsx("tables.xlsx")
XLSXFile("tables.xlsx") containing 2 Worksheets
            sheetname size          range
-------------------------------------------------
               Sheet1 8x7           A1:G8
               Sheet2 11x3          A1:C11

julia> s = f["Sheet1"]
8×7 XLSX.Worksheet: ["Sheet1"](A1:G8)

julia> XLSX.tables(s)
2-element Vector{XLSX.Table}:
7x3 Table (id=1, "IO_Table", A1:C8)
5x3 Table (id=2, "Age_height", E1:G6)

julia> t = XLSX.table(s, "Age_height")
XLSX.Table: "Age_height"
  id      : 2
  range   : E1:G6
  columns : name, age, height
  style   : TableStyleMedium2 (row stripes)
  totals  : no

julia> XLSX.table(s, 2)   # the same above, by id
XLSX.Table: "Age_height"
  id      : 2
  range   : E1:G6
  columns : name, age, height
  style   : TableStyleMedium2 (row stripes)
  totals  : no

XLSX.tables returns an empty vector for a worksheet with no Tables. XLSX.table throws a KeyError if the name or id is not found on that sheet.

Getting the data out

A Table is itself a Tables.jl source, so it can be handed directly to any compatible sink. XLSX.jl also provides the same three accessors it provides for worksheets:

julia> using DataFrames

julia> DataFrame(t)                    # Tables.jl sink
5×3 DataFrame
 Row │ name     age    height
     │ String   Int64  Int64
─────┼────────────────────────
   1 │ Alice       34     165
   2 │ Bob         41     180
   3 │ Carol       29     158
   4 │ Dave       55      175
   5 │ Erin        38     162

julia> XLSX.gettable(t)                # as an `XLSX.DataTable`
XLSX.DataTable(Any[["Alice", "Bob", "Carol", "Dave", "Erin"], [34, 41, 29, 55, 38], [165, 180, 158, 175, 162]], [:name, :age, :height], Dict(:name => 1, :age => 2, :height => 3))

julia> XLSX.getdata(t)                 # as a `Matrix`
5×3 Matrix{Any}:
 "Alice"  34  165
 "Bob"    41  180
 "Carol"  29  158
 "Dave"   55  175
 "Erin"   38  162

In every case, only the Table's own data rows are returned. The header row is used for column names and is excluded from the data, as is the totals row if the Table has one. Data elsewhere on the sheet — beside the Table, below it, or in another Table — are never included.

Iterating rows

XLSX.eachtablerow applied to a Table returns an iterator over its data rows:

julia> for r in XLSX.eachtablerow(t)
           name   = r[:name]
           height = r[3]
           println("$name is $(height)cm")
       end
Alice is 165cm
Bob is 180cm
Carol is 158cm
Dave is 175cm
Erin is 162cm

Row positions

There is deliberately no row_number method for a Table's rows, because two different things could reasonably be meant by it: a row's position within the Table, or its row number on the worksheet. The two existing precedents point different ways — XLSX.row_number applied to a TableRow (from XLSX.eachtablerow(sheet, ...)) is table-relative, whereas for a Table starting partway down a sheet the worksheet row is often what you actually need. Rather than pick one silently, both are available directly: enumerate for the position within the Table, and each row's row_number field for its worksheet row.

julia> t = XLSX.table(s, "Age_height")   # a Table occupying E1:G6

julia> for (i, r) in enumerate(XLSX.eachtablerow(t))
           println("table row $i is worksheet row $(r.row_number): ", r[:name])
       end
table row 1 is worksheet row 2: Alice
table row 2 is worksheet row 3: Bob
table row 3 is worksheet row 4: Carol
table row 4 is worksheet row 5: Dave
table row 5 is worksheet row 6: Erin

enumerate gives the position within the Table's data rows, counting from 1; the row_number field of each row gives its actual worksheet row, which is what you need if you want to go on and read or write those cells directly:

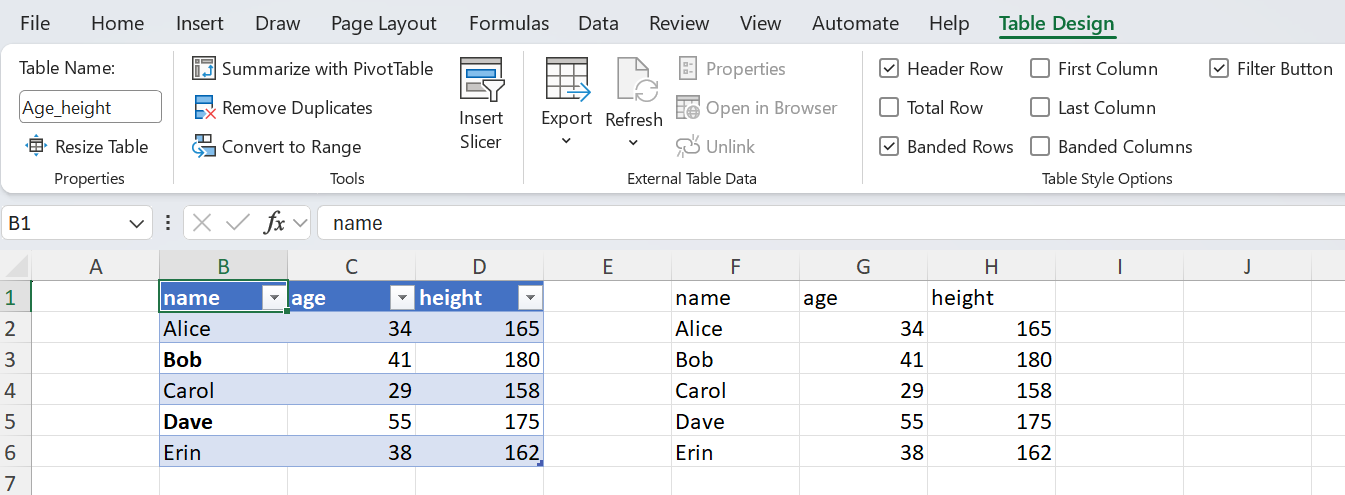

julia> for r in XLSX.eachtablerow(t)
           if r[:age] > 40
               XLSX.setFont(s, XLSX.CellRef(r.row_number, 5); bold=true)
           end
       end

Reading straight from a file

Both XLSX.readtable and XLSX.readto accept a table_name keyword to read a Table without opening the file first:

julia> XLSX.readto("tables.xlsx", "Sheet1", DataFrame; table_name="Age_height")

julia> XLSX.readto("tables.xlsx", DataFrame; table_name="Age_height")

julia> XLSX.readtable("tables.xlsx", "Sheet1"; table_name="Age_height")

Supplying the sheet name is faster on a workbook with many sheets: only that one worksheet is decompressed, exactly as for a normal single-sheet read. Omitting it searches every worksheet for the named Table — Table names are unique across a workbook, so this is unambiguous — but each sheet's Table metadata must be scanned until the Table is found. Cell data for the non-matching sheets are still never read.

table_name cannot be combined with a columns range, since a Table's own range is authoritative; doing so throws an XLSXError.

Creating Tables

From data already in the sheet

XLSX.addtable! turns an existing range of cells into a Table. The first row of the range is read as the header row, so those cells must already hold the column names:

julia> f = XLSX.newxlsx()
XLSXFile("blank.xlsx") containing 1 Worksheet
            sheetname size          range
-------------------------------------------------
               Sheet1 1x1           A1:A1

julia> s = f[1]
1×1 XLSX.Worksheet: ["Sheet1"](A1:A1)

julia> s["A1"] = "region"; s["B1"] = "revenue"; s["C1"] = "margin";

julia> s["A2"] = "North"; s["B2"] = 1000; s["C2"] = 200;

julia> s["A3"] = "South"; s["B3"] = 1500; s["C3"] = 350;

julia> s["A4"] = "East";  s["B4"] = 900;  s["C4"] = 180;

julia> XLSX.addtable!(s, "A1:C4"; name="Sales", style="TableStyleMedium2")
XLSX.Table: "Sales"
  id      : 1
  range   : A1:C4
  columns : region, revenue, margin
  style   : TableStyleMedium2 (row stripes)
  totals  : no

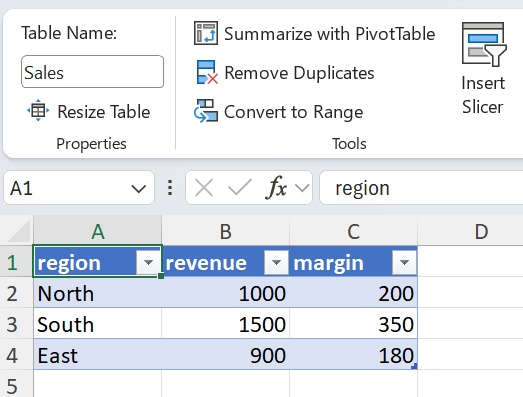

julia> writexlsx("NowATable.xlsx", f, overwrite=true)

addtable! only wraps existing cells: it writes no header, data or totals values of its own. If name is omitted, a unique name is generated ("Table1", "Table2", …).

Table names are workbook-scoped and share a namespace with defined names, so addtable! rejects a name already used by another Table or by a defined name anywhere in the workbook. Names must also be valid Excel Table names — no spaces, and beginning with a letter or underscore.

ref must span at least two rows: a header row plus at least one data row. Excel does not support header-only Tables.

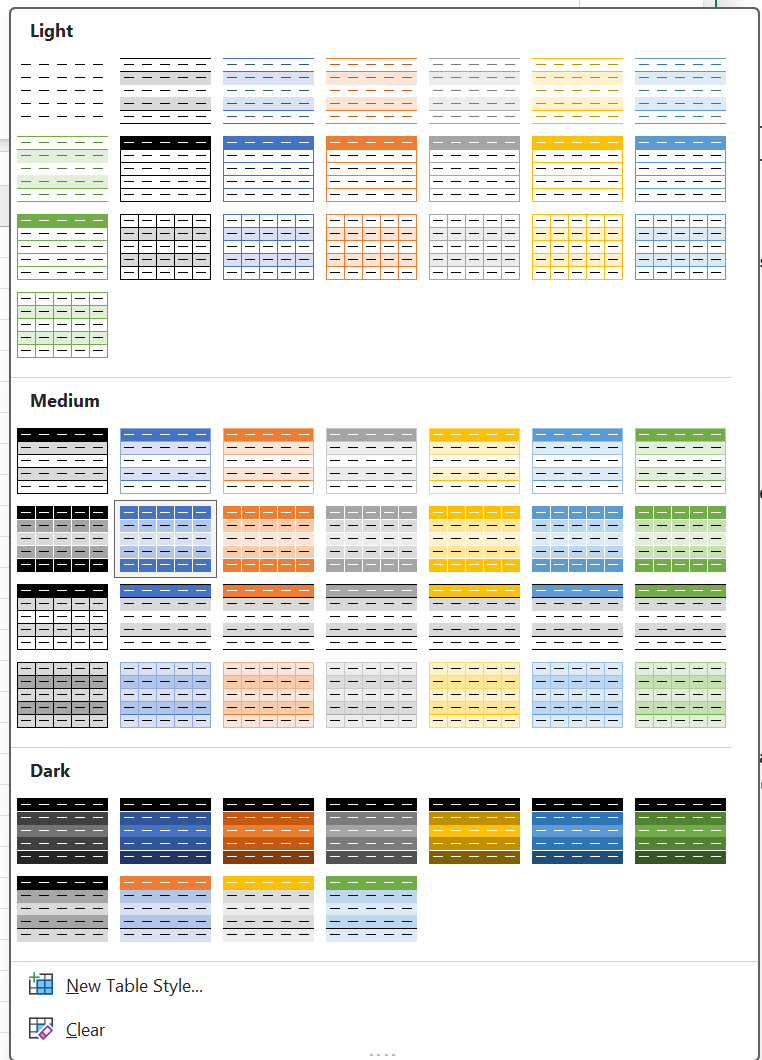

style should be one of Excel's built-in Table style names, matching the Table Styles gallery in Excel's Table Design ribbon:

The first light style shown above corresponds to None - there are only 21 light styles. style is not validated against this list, because a workbook may also define custom Table styles of its own; any string is passed through as the style name. An unrecognized name that isn't a custom style defined elsewhere in the workbook will simply make Excel fall back to its default Table appearance.

While writing tabular data

XLSX.writetable! and XLSX.writetable accept as_table=true to turn the range they have just written into a Table, so there is no need for a separate addtable! call:

julia> using DataFrames

julia> df = DataFrame(region=["North", "South", "East"], revenue=[1000, 1500, 900])

julia> XLSX.writetable("sales.xlsx", df; as_table=true, table_name="Sales", table_style="TableStyleMedium2")

as_table=true cannot be combined with write_columnnames=false, since a Table needs a header row, and requires at least one data row.

The totals keyword sets a totals row in the same call, taking the same "ColumnName" => value pairs as XLSX.settotals!:

julia> using DataFrames

julia> df = DataFrame(region=["North", "South", "East"],
                      revenue=[1000, 1500, 900],
                      margin=[200, 350, 180])

julia> XLSX.writetable("sales.xlsx", df;
           as_table=true,
           table_name="Sales",
           table_style="TableStyleMedium2",
           totals=["region" => "Total", "revenue" => :sum, "margin" => :average],
       )

This writes the data, wraps it as a Table named Sales, and adds a totals row below it in one step — equivalent to calling writetable with as_table=true and then settotals! separately. totals requires as_table=true.

Custom formulas work here too, subject to the same aggregation requirement described under Totals rows:

julia> XLSX.writetable("sales.xlsx", df;
           as_table=true,
           table_name="Sales",
           totals=["revenue" => :sum,
                   "margin"  => (:custom, "SUBTOTAL(109,Sales[revenue])-SUBTOTAL(109,Sales[margin])")],
       )

Note that totals is only supported on the single-sheet forms. For multiple sheets, build the workbook first with XLSX.openxlsx and apply XLSX.writetable! per sheet, each with its own totals:

julia> XLSX.openxlsx("report.xlsx", mode="w") do xf
           s1 = xf[1]
           XLSX.renamesheet!(s1, "REPORT_A")
           XLSX.writetable!(s1, df1; as_table=true, table_name="Report_A",
                            totals=["revenue" => :sum])

           s2 = XLSX.addsheet!(xf, "REPORT_B")
           XLSX.writetable!(s2, df2; as_table=true, table_name="Report_B",
                            totals=["amount" => :sum])
       end

For the multi-sheet forms of writetable, as_table and table_style apply uniformly to every sheet. Each Table's name is taken from its sheet's name, normalized into a valid Table name if necessary (so a sheet named "Q1 Report" gives a Table named Q1_Report); if the normalized name would collide with an existing Table or defined name, an auto-generated name is used instead and a warning is issued.

The same keywords are available on XLSX.writetable! when writing into an existing worksheet.

Totals rows

Adding a totals row

XLSX.settotals! adds or updates a Table's totals row. Each setting is a "ColumnName" => value pair:

julia> XLSX.settotals!(s, "Sales", "region" => "Total", "revenue" => :sum, "margin" => :average)
XLSX.Table: "Sales"
  id      : 1
  range   : A1:C5
  columns : region, revenue, margin
  style   : TableStyleMedium2 (row stripes)
  totals  : yes

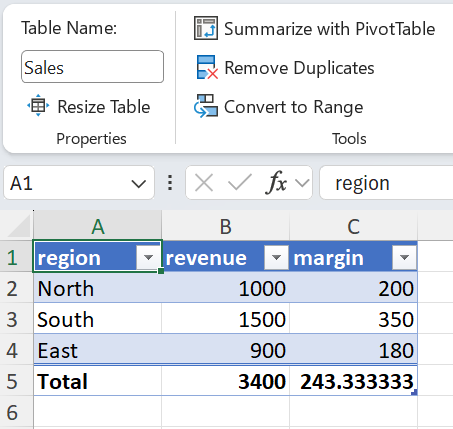

If the Table did not already have a totals row, one is added by extending the Table by one row — the row immediately below its current last row, which must be empty.

There are three kinds of setting:

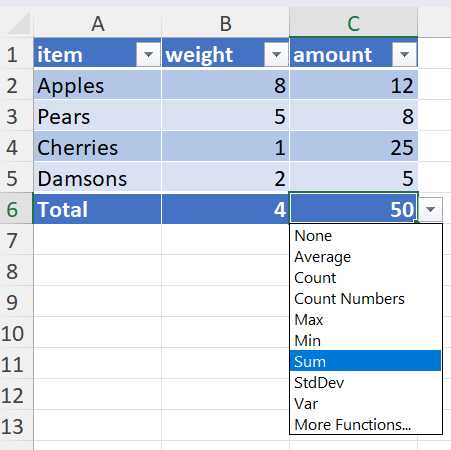

A Symbol names a built-in totals function. XLSX.jl writes both the totalsRowFunction metadata and the corresponding SUBTOTAL formula into the cell; Excel does the arithmetic.

A String is written as a plain text label — conventionally in the leftmost column, as "Total" above.

A (:custom, formula) tuple covers Excel's More Functions… option, for a totals row cell that isn't one of the built-ins.

julia> XLSX.settotals!(s, "Sales", "margin" => (:custom, "SUBTOTAL(109,Sales[revenue])-SUBTOTAL(109,Sales[margin])"))

Updating a totals row

Columns not mentioned in a settotals! call are left alone, so an existing totals row can be adjusted one column at a time:

julia> XLSX.settotals!(s, "Sales", "revenue" => :max)   # margin's average is untouched

Setting a column that already has totals content cleanly replaces it, whether it was a function, a custom formula or a label. To remove a column's totals, pass :none explicitly:

julia> XLSX.settotals!(s, "Sales", "margin" => :none)   # margin's totals cell cleared

The totals row itself remains, even if every column's totals is cleared — an empty totals row is valid, and Excel displays it.

As with every formula written by XLSX.jl, no cached value is stored alongside a totals formula. setFormula replaces the cell with a value-less formula cell, so the cell reads back as missing, and Excel computes the result when the file is opened (XLSX.jl sets fullCalcOnLoad to force recalculation).

Modifying Tables

Appending rows

XLSX.appendtable! adds rows to an existing Table and extends its range to include them:

julia> XLSX.appendtable!(s, "Sales", [("West", 1200, 260), ("North East", 800, 150)])
XLSX.Table: "Sales"
  id      : 1
  range   : A1:C7
  columns : region, revenue, margin
  style   : TableStyleMedium2 (row stripes)
  totals  : yes

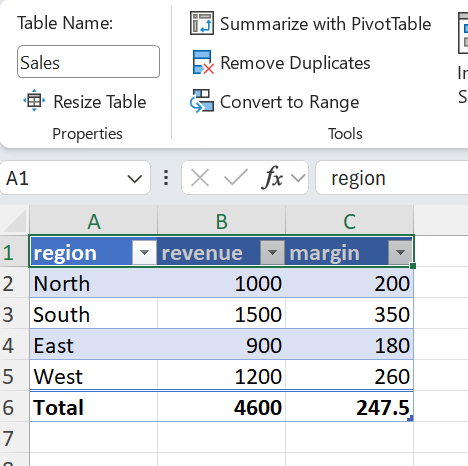

If the Table has a totals row, it moves down so that it remains the last row, and its content is regenerated from the Table's own per-column settings — functions, custom formulas and labels are all preserved, but values are removed to be recalculated by Excel.

The rows immediately below the Table that will be filled by appendtable! must be empty; otherwise an XLSXError is thrown. Pass check_empty=false to overwrite whatever is there.

data may be any Tables.jl source (a DataFrame, an XLSX.DataTable, etc), an AbstractMatrix, or a vector of row vectors or tuples. Sources that expose column names are matched by name and reordered into the Table's column order; a source missing any of the Table's columns, or carrying a column the Table does not have, is an error. Sources without column names are matched positionally, so their column order must match the Table's:

julia> df = DataFrame(margin=[260], revenue=[1200], region=["West"])  # scrambled order

julia> XLSX.appendtable!(s, "Sales", df)   # matched by name, not position

Deleting a Table

XLSX.deletetable! removes a Table by name or by id:

julia> XLSX.deletetable!(s, "Sales")

This removes the Table object only — its definition, its style, its autofilter and its totals metadata. The underlying cells are left completely untouched: the header row, the data rows and any totals row all keep the values they held before the Table was deleted.

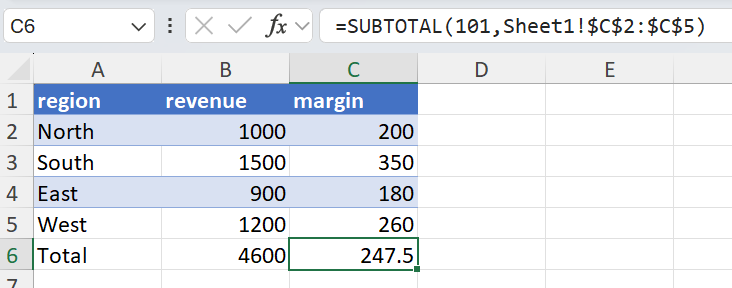

This mirrors Excel's own Table Design → Convert to Range. There is no single Excel operation that deletes a Table and its data together, and deletetable! follows the same convention. If you want the data gone as well, clear the cells yourself as a separate step:

julia> t = XLSX.table(s, "Sales")

julia> XLSX.deletetable!(s, "Sales")

julia> writexlsx("Sales3.xlsx", f, overwrite=true)

julia> s[t.ref] = ""        # optional: clear the data too

julia> s[:]
6×3 Matrix{Any}:
 missing  missing  missing
 missing  missing  missing
 missing  missing  missing
 missing  missing  missing
 missing  missing  missing
 missing  missing  missing

Preserving Tables in existing files

Tables in a workbook opened for editing are preserved through a read-write cycle, whether or not they are touched:

julia> f = XLSX.opentemplate("tables.xlsx")

julia> f["Sheet1"]["Z100"] = "an unrelated edit"

julia> XLSX.writexlsx("tables_edited.xlsx", f; overwrite=true)

Every Table's definition, style, autofilter and totals metadata survives unchanged, as do Tables on sheets that were never accessed.

What is not supported

The following aspects of Excel Tables are not currently implemented. Files containing them can still be read, written and round-tripped — the relevant parts are simply preserved as they are, rather than being interpreted:

• Structured reference parsing. Formulas that use structured references (=[@Qty]*[@Price]) are preserved verbatim but not parsed or rewritten.
• Calculated columns. A Table's calculatedColumnFormula definitions are preserved but cannot be created or edited through XLSX.jl.
• Resizing and restructuring. Beyond XLSX.appendtable!, a Table's range cannot be shrunk, and columns cannot be added or removed.
• Custom Table styles. Built-in style names can be applied, and a workbook's existing custom styles are preserved, but new custom Table styles cannot be defined.
• Slicers and pivot tables. Not supported.

An XLSXFile must be opened in write mode for any of the Table modification functions to work, otherwise an error is thrown.
